1200Mbps Wireless EasyMESH Router
(3-PACK)

Model:RE1200R2GCM-2T2R-V1ab

  • High performance wireless speeds up to 1200Mbps
  • Seamlessly connects you to the strongest signal as you move from room to room.
  • MU-MIMO technology creates a powerful, fast, and highly efficient Wi-Fi network
  • Automatically directs your devices to the optimal wireless band
  • Pairing been completed in advance, so you just need to plug them in and EASYMESH network ready for use.
  • Support WPS configuration with 1-Push button
  • Keep your kids safe by blocking specific devices and websites, and set a schedule to turn off wireless networks or restrict access.
  • One wireless network name (SSID) for your entire environment, no matter where you are.
  • A simple web APP help user to set up EASYMESH network quickly

Specification

Wireless Standards IEEE 802.11b/g/n (2.4GHz) ; IEEE 802.11ac (5GHz)
Support EASYMESH Technology
Data Rate 300Mbps (2.4GHz) ; 866Mbps (5GHz)

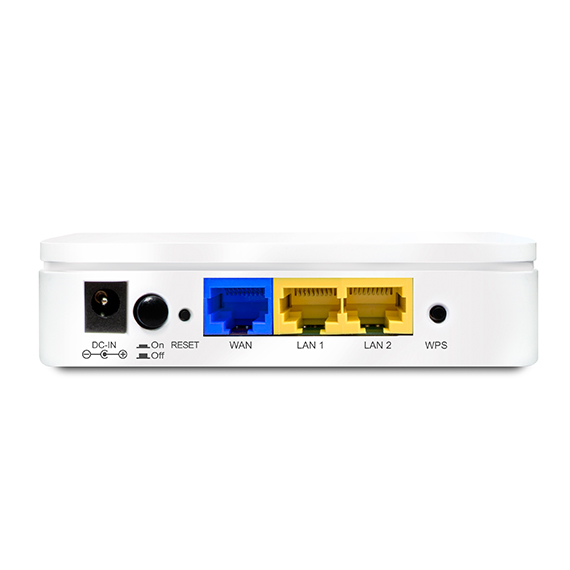

Interface 1 * DC Power Jack
1 * WAN:10/100/1000Mbps Auto MDI/ MDIX RJ-45 Ethernet Port
2 * LAN:10/100/1000Mbps Auto MDI/ MDIX RJ-45 Ethernet Port
WAN IP Assignment  Static IP / DHCP client / PPPoE client
Features IGMP snooping and IGMP proxy
IPv4/IPv6 dual stacks function
VPN pass through
MU-MIMO
Band Steering
Beamforming
Management - HTTP Web-based Configuration
Remote Management - TR069 / HTTP
Support Mobile Web App to set up EASYMESH network quickly
Button WPS, Power on/off, Reset
LED Power, WLAN, WPS, LAN, WAN, WiFi Strength
Antenna 2 x 2.4Ghz Internal Antennas + 2 x 5Ghz Internal Antennas
Wireless Security 64 / 128-bit WEP,WPA, WPA2, WPS
Operating Environment Operating temperature: 0 – 40°C
Storage temperature: -20 – 70°C
Humidity: 20 – 95%RH non-condensing
Dimensions 116 (L) × 91 (W) × 29(H) mm
Package 1pcs EasyMESH WiFi Controller
2pcs EasyMESH WiFi Agents
3pcs Power Adaptor
1pcs Quick Installation Guide
1pcs Ethernet Cable (RJ-45)

BaudTec Corporation
7F, No.32, Zhongxing Rd., Xizhi Dist., New Taipei City 22161, Taiwan (R.O.C.)
TEL: +886(2)2643-8458
FAX:+886(2)2643-8459
