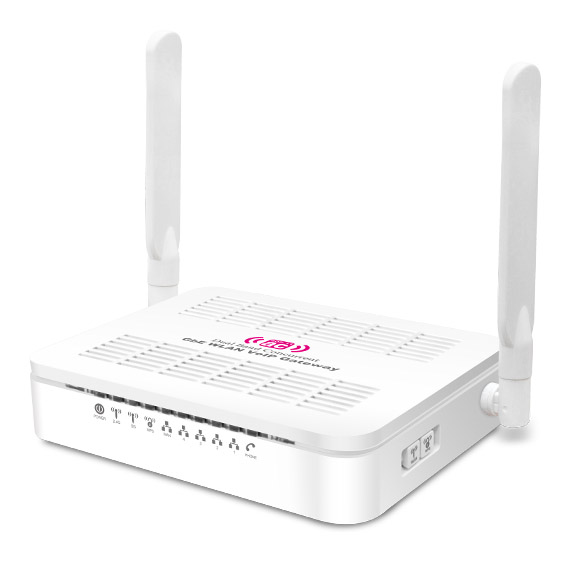

1200Mbps Wireless  VoIP Gateway

11ac 2T2R + 11bgn 2T2R Dual-Band Concurrent
Model:RE1200VR4GC-2T2R-1S-V7abi

  • High performance wireless speeds up to 1200Mbps
  • Super-fast concurrent dual-band (2.4GHz and 5GHz)
  • Single device combine VoIP Gateway, Wireless AP, Gigabit Ethernet switch hub function
  • Support SIP VoIP standard protocol
  • Equipped with 1x FXS Port , 1x WAN Port, 4 x LAN Ports
  • Supports Call Features: call waiting, call transfer, 3 ways call, voice activity detection (VAD), comfort noise generation (CNG)
  • Support QoS
  • 2T2R MIMO Technology delivers excellent throughput and performance.
  • Improve wireless reception and reduce interference for stronger, faster and more reliable wireless connection
  • Support WPS configuration with 1-Push button
  • Support WiFi On/Off configuration with 1-Push button
  • Advanced 64 / 128-bit WEP, WPA, WPA2, WPS encryption protects your network from security threats

Specification

Standards IEEE 802.11b/g/n (2.4GHz) ; IEEE 802.11ac (5GHz)
Compliant with SIP standard (RFC3261)
Supports G.711 A/μ law, and G.729 Audio Codec standards
Supports Call Features: call waiting, call transfer, 3 ways call, voice activity detection (VAD), comfort noise generation (CNG)
Data Rate 300Mbps (2.4GHz) ; 866Mbps (5GHz)

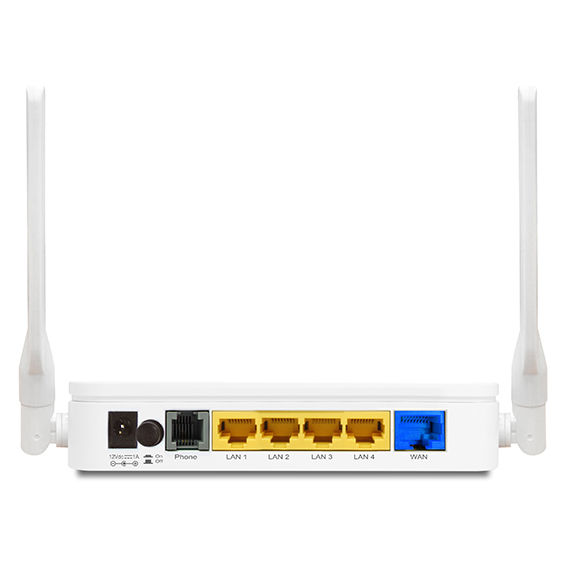

Interface 1 * DC Power Jack
1 * VoIP FXS Port
1 * WAN:10/100/1000Mbps Auto MDI/ MDIX RJ-45 Ethernet Port
4 * LAN:10/100/1000Mbps Auto MDI/ MDIX RJ-45 Ethernet Port
WAN IP Assignment Static IP / DHCP client / PPPoE client
Features IGMP snooping and IGMP proxy
IPv4/IPv6 dual stacks function
VPN pass through
Management - HTTP Web-based Configuration
Remote Management - TR069 / HTTP
Button WPS, WiFi On/Off, Power On/Off, Reset
LED Power, WLAN, WPS, WAN, 4 x LAN, Phone
Antenna 2 x 5dbi External Antennas
Wireless Security 64 / 128-bit WEP,WPA, WPA2, WPS
Operating Environment Operating temperature: 0 – 40°C
Storage temperature: -20 – 70°C
Humidity: 20 – 95%RH non-condensing
Dimensions 140 (L) × 107 (W) × 30(H) mm
Package 1pcs Wireless VoIP Gateway
1pcs Power Adaptor
1pcs Quick Installation Guide
1pcs Ethernet Cable (RJ-45)
1pcs Telephone Cable (RJ-11)
1pcs Splitter (Optional)
