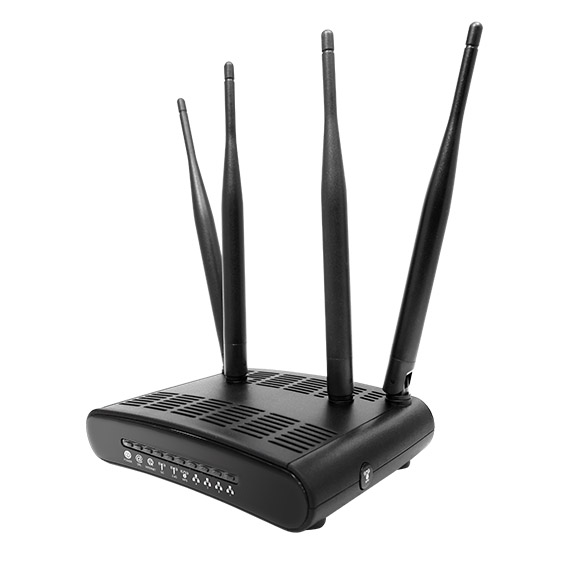

1200Mbps Wireless VDSL2 Router


11ac 2T2R + 11bgn 2T2R Dual-Band Concurrent

Model: RN104R4GC-2T2R-A5b

  • High performance wireless speeds up to 1200Mbps
  • Super-fast concurrent dual-band (2.4GHz and 5GHz)
  • High-Gain antennas for superior wireless coverage
  • VDSL2 standards ensuring high-speed Internet access up to 100Mbps downstream & upstream
  • VDSL/VDSL2 profiles 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b
  • 2T2R MIMO Technology delivers excellent throughput and performance.
  • Support WPS configuration with 1-Push button
  • Advanced 64 / 128-bit WEP, WPA, WPA2, WPS encryption protects your network from security threats

Specification

Standards IEEE 802.11b/g/n (2.4GHz) ; IEEE 802.11ac (5GHz)
Compliant with VDSL2 Standard, ITU-T G.994.1 and 997.1
VDSL2 Profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a and 35b
Supports Annex A, Annex B
802.1p VLAN ID supported
Backward compatible with ADSL2+
Data Rate 300Mbps (2.4GHz) ; 866Mbps (5GHz)

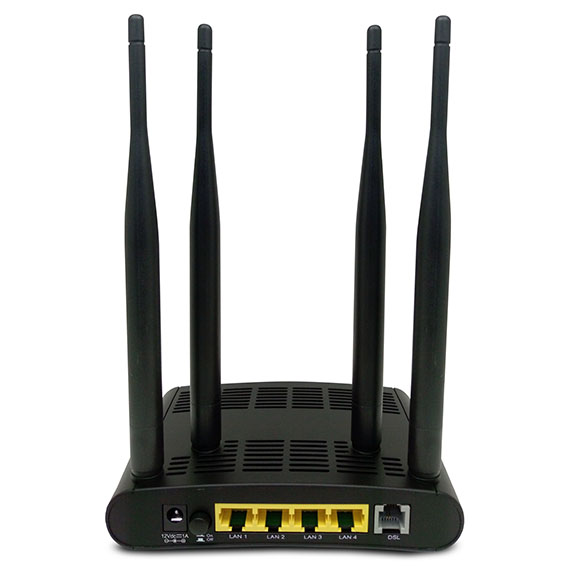

Interface 1 * DC Power Jack
1 * RJ11 Phone jacks for V/ADSL connection
4 * LAN:10/100/1000Mbps Auto MDI/ MDIX RJ-45 Ethernet Port
Features IGMP snooping and IGMP proxy
IPv4/IPv6 dual stacks function
VPN pass through
Management - HTTP Web-based Configuration
Remote Management - TR069 / HTTP
Button WPS, Power On/Off, Reset
LED Power, DSL, WLAN, WPS, 4 x LAN
Antenna 4 x External Antennas
Wireless Security 64 / 128-bit WEP,WPA, WPA2, WPS
Operating Environment Operating temperature: 0 – 40°C
Storage temperature: -20 – 70°C
Humidity: 20 – 95%RH non-condensing
Dimensions 140 (L) × 107 (W) × 30(H) mm
Package 1pcs Wireless VDSL2 Router
1pcs Power Adaptor
1pcs Quick Installation Guide
1pcs Ethernet Cable (RJ-45)
1pcs Telephone Cable (RJ-11)
1pcs Splitter (Optional)

BaudTec Corporation
7F, No.32, Zhongxing Rd., Xizhi Dist., New Taipei City 22161, Taiwan (R.O.C.)
TEL: +886(2)2643-8458
FAX:+886(2)2643-8459
