1200Mbps Wireless VDSL2 Router

11ac 2T2R + 11bgn 2T2R Dual-Band Concurrent

Model: RN104R5GCH2-2T2R-A3

  • High performance wireless speeds up to 1200Mbps
  • Super-fast concurrent dual-band (2.4GHz and 5GHz)
  • High-Gain antennas for superior wireless coverage
  • VDSL2 standards ensuring high-speed Internet access up to 100Mbps downstream & upstream
  • VDSL/VDSL2 profiles 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a
  • 2T2R MIMO Technology delivers excellent throughput and performance.
  • Support WiFi On/Off, WPS configuration with 1-Push button
  • Advanced 64 / 128-bit WEP, WPA, WPA2, WPS encryption protects your network from security threats


Standards IEEE 802.11b/g/n (2.4GHz) ; IEEE 802.11ac (5GHz)
Compliant with VDSL2 Standard, ITU-T G.994.1 and 997.1
VDSL2 Profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a
Supports Annex A, Annex B
802.1p VLAN ID supported
Backward compatible with ADSL2+
Data Rate 300Mbps (2.4GHz) ; 866Mbps (5GHz)

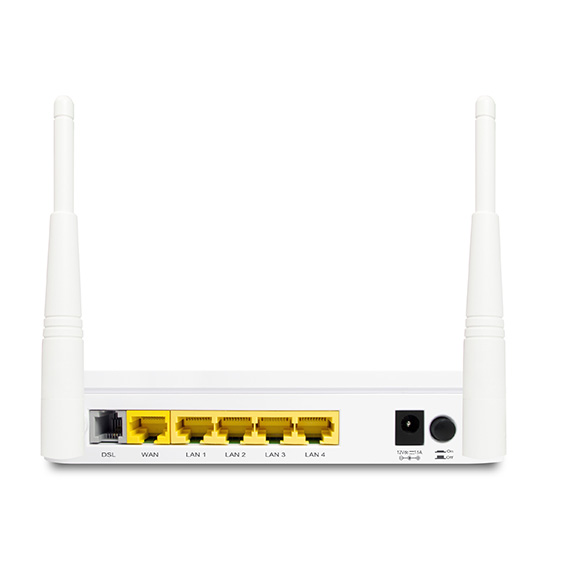

Interface 1 * DC Power Jack
1 * RJ11 Phone jacks for V/ADSL connection
2 * Host USB
1 * WAN:10/100/1000Mbps Auto MDI/ MDIX RJ-45 Ethernet Port
4 * LAN:10/100/1000Mbps Auto MDI/ MDIX RJ-45 Ethernet Port
WAN IP Assignment Static IP / DHCP client / PPPoE client
Features IGMP snooping and IGMP proxy
IPv4/IPv6 dual stacks function
VPN pass through
Management - HTTP Web-based Configuration
Remote Management - TR069 / HTTP
USB File storage function
Button WiFi On/Off, WPS, Power On/Off, Reset
Antenna 2 x 5dbi Dual-Band External Antennas
Wireless Security 64 / 128-bit WEP,WPA, WPA2, WPS
Operating Environment Operating temperature: 0 – 40°C
Storage temperature: -20 – 70°C
Humidity: 20 – 95%RH non-condensing
Dimensions 185 (L) × 128 (W) × 36(H) mm
Package 1pcs Wireless VDSL2 Router
1pcs Power Adaptor
1pcs Quick Installation Guide
1pcs Ethernet Cable (RJ-45)
1pcs Telephone Cable (RJ-11)
1pcs Splitter (Optional)
