1200Mbps Wireless VDSL2 IAD

11ac 2T2R + 11bgn 2T2R Dual-Band Concurrent
Model: RN104VR5GC-2T2R-2S-A6abi

  • High performance wireless speeds up to 1200Mbps
  • Super-fast concurrent dual-band (2.4GHz and 5GHz)
  • 4-in-1 device combine VDSL2 modem, VoIP Gateway, Wireless AP,  Gigabit Ethernet switch hub function
  • VDSL2 standards ensuring high-speed Internet access up to 100Mbps downstream & upstream
  • VDSL/VDSL2 profiles 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b
  • Support SIP VoIP standard protocol
  • Supports Call Features: call waiting, call transfer, 3 ways call, voice activity detection (VAD), comfort noise generation (CNG)
  • Equipped with 1x VDSL Port, 2x FXS Port , 1x WAN Port, 4 x LAN Ports
  • Support QoS
  • 2T2R MIMO Technology delivers excellent throughput and performance.
  • Support WPS configuration with 1-Push button
  • Advanced 64 / 128-bit WEP, WPA, WPA2, WPS encryption protects your network from security threats

Specification

Standards IEEE 802.11b/g/n (2.4GHz) ; IEEE 802.11ac (5GHz)
Compliant with VDSL2 Standard, ITU-T G.994.1 and 997.1
VDSL2 Profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a and 35b
Supports Annex A, Annex B
802.1p VLAN ID supported
Backward compatible with ADSL2+
Compliant with SIP standard (RFC3261)
Supports G.711 A/μ law, and G.729 Audio Codec standards
Supports Call Features: call waiting, call transfer, 3 ways call, voice activity detection (VAD), comfort noise generation (CNG)
Data Rate 300Mbps (2.4GHz) ; 866Mbps (5GHz)

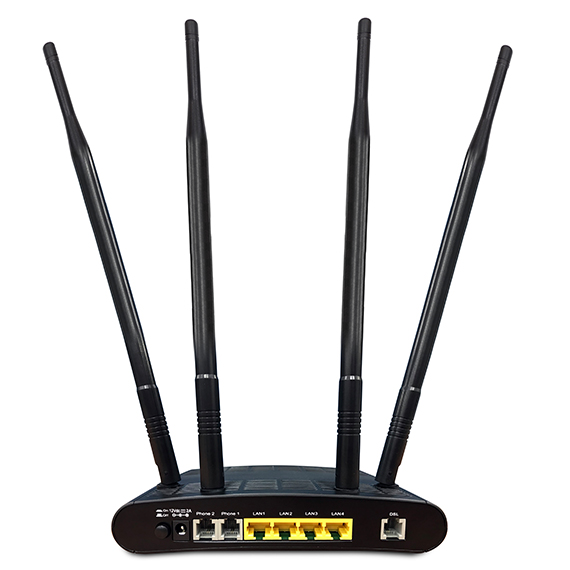

Interface 1 * DC Power Jack
1 * RJ11 Phone jacks for V/ADSL connection
2 * VoIP FXS Port
1 * WAN:10/100/1000Mbps Auto MDI/ MDIX RJ-45 Ethernet Port
4 * LAN:10/100/1000Mbps Auto MDI/ MDIX RJ-45 Ethernet Port
WAN IP Assignment Static IP / DHCP client / PPPoE client
Features IGMP snooping and IGMP proxy
IPv4/IPv6 dual stacks function
VPN pass through
Management - HTTP Web-based Configuration
Remote Management - TR069 / HTTP
Button WPS, Power On/Off, Reset
LED Power, DSL, WLAN, WPS, WAN, 4 x LAN, Phone 1, Phone 2
Antenna 4 x External Antennas
Wireless Security 64 / 128-bit WEP,WPA, WPA2, WPS
Operating Environment Operating temperature: 0 – 40°C
Storage temperature: -20 – 70°C
Humidity: 20 – 95%RH non-condensing
Dimensions 185 (L) × 128 (W) × 36(H) mm
Package 1pcs Wireless VDSL2 IAD
1pcs Power Adaptor
1pcs Quick Installation Guide
1pcs Ethernet Cable (RJ-45)
1pcs Telephone Cable (RJ-11)
1pcs Splitter (Optional)

BaudTec Corporation
7F, No.32, Zhongxing Rd., Xizhi Dist., New Taipei City 22161, Taiwan (R.O.C.)
TEL: +886(2)2643-8458
FAX:+886(2)2643-8459
