1500Mbps 4G LTE WiFi-6 EasyMESH Router
11ac 2T2R + 11bgn 2T2R Dual-Band Concurrent
Model:RX1500R2GCMs-2T2R-V0ab
- High performance wireless speeds up to 1500Mbps
- With LTE-based Internet connection (embedded LTE module), users can access the Internet while sitting on anywhere.
- Super-fast concurrent dual-band (2.4GHz and 5GHz)
- High-Gain antennas for superior wireless coverage
- Seamlessly connects you to the strongest signal as you move from room to room.
- 2T2R MU-MIMO Technology delivers excellent throughput and performance.
- Improve wireless reception and reduce interference for stronger, faster and more reliable wireless connection
- Support WPS configuration with 1-Push button
- Advanced 64 / 128-bit WEP, WPA, WPA2, WPS encryption protects your network from security threats
- Built-in Firewall, client access control and URL filtering
- Keep your kids safe by blocking inappropriate sites.
- Establish online boundaries for your family.
- Lower Power consumption 28nm
- A user friendly APP helps user to set up EasyMESH network quickly.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Specification
| Wireless Standards | IEEE 802.11ax/ac/n/a (5GHz) ; IEEE 802.11b/g/n (2.4GHz) Support EASYMESH Technology |
|---|---|
| Data Rate | 300Mbps (2.4GHz) ; 1200Mbps (5GHz) |

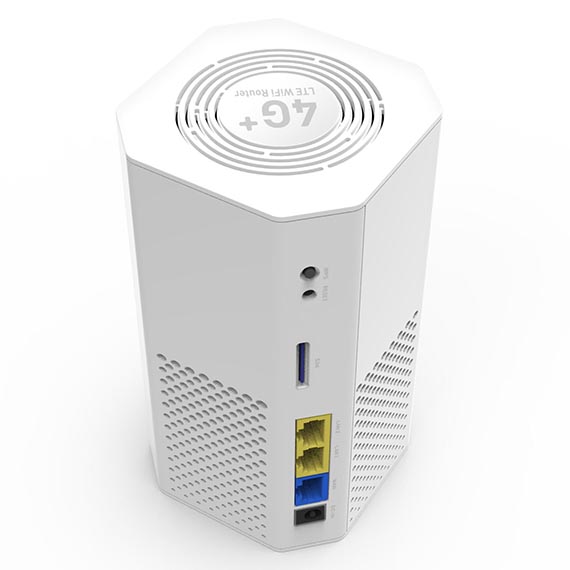

| Interface | 1 * SIM socket 1 * DC Power Jack 1 * WAN:10/100/1000Mbps Auto MDI/ MDIX RJ-45 Ethernet Port 2 * LAN:10/100/1000Mbps Auto MDI/ MDIX RJ-45 Ethernet Port |
| WAN IP Assignment | Static IP / DHCP client / PPPoE client |
| LTE Specification | WCDMA : Band 1/3/5/8 FDD-LTE : Band1/3/5/7/8/20/28/321 TDD-LTE : Band 38/40/41 (2555~2655MHz) LTE 2DLCA(Cat6) : B1+B1/3/5/7/8/20/28, B3+B3/5/7/8/20/28, B5+B7,B7+B7/8/20/28, B38+B38, B40+B40, B41+B41, B20+B321 GNSS(RESERVED): GPS/GLONASS/BeiDou/Galileo/QZSS |
| Features | IGMP snooping and IGMP proxy IPv4/IPv6 dual stacks function VPN pass through Management - HTTP Web-based Configuration Remote Management - TR069 / HTTP MU-MIMU : Down link & Up link OFDMA : Down link & Up link Beamforming BSS coloring 1024QAM Lower Power consumption 28nm Support Mobile App to set up EASYMESH network quickly |
| Button | Power On/Off, WPS, Reset |

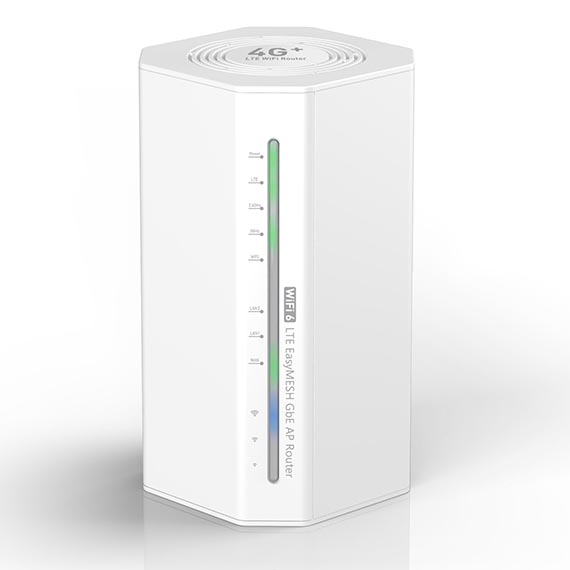

| LED | Power, LTE, 2.4G, 5G, WPS, WAN, 2 x LAN, WiFi Strength |
| Antenna | 2 x LTE Internal Antennas 2 x 2.4Ghz Internal Antennas + 2 x 5Ghz Internal Antennas |
| Wireless Security | 64 / 128-bit WEP,WPA, WPA2, WPS |
| Operating Environment | Operating temperature: 0 – 40°C Storage temperature: -20 – 70°C Humidity: 20 – 95%RH non-condensing |
| Dimensions | 87 (L) × 87 (W) × 162(H) mm |
| Package | 1pcs 4G LTE WiFi-6 EasyMESH Router 1pcs Power Adaptor 1pcs Quick Installation Guide 1pcs Ethernet Cable (RJ-45) |
