1500Mbps Wireless EasyMESH WiFi-6 Router

11ac 2T2R + 11bgn 2T2R Dual-Band Concurrent

  • High performance wireless speeds up to 1500Mbps
  • Super-fast concurrent dual-band (2.4GHz and 5GHz)
  • High-Gain antennas for superior wireless coverage
  • 2T2R MU-MIMO Technology delivers excellent throughput and performance.
  • Improve wireless reception and reduce interference for stronger, faster and more reliable wireless connection
  • Support WPS configuration with 1-Push button
  • Advanced 64 / 128-bit WEP, WPA, WPA2, WPS encryption protects your network from security threats
  • Built-in Firewall, client access control and URL filtering
  • Keep your kids safe by blocking inappropriate sites.
  • Establish online boundaries for your family.
  • Lower Power consumption 28nm
  • 802.11r Roaming
  • A user friendly APP helps user to set up EasyMESH network quickly.


Wireless Standards IEEE 802.11ax/ac/n/a (5GHz) ; IEEE 802.11b/g/n (2.4GHz)
Support EASYMESH Technology
Data Rate 300Mbps (2.4GHz) ; 1200Mbps (5GHz)

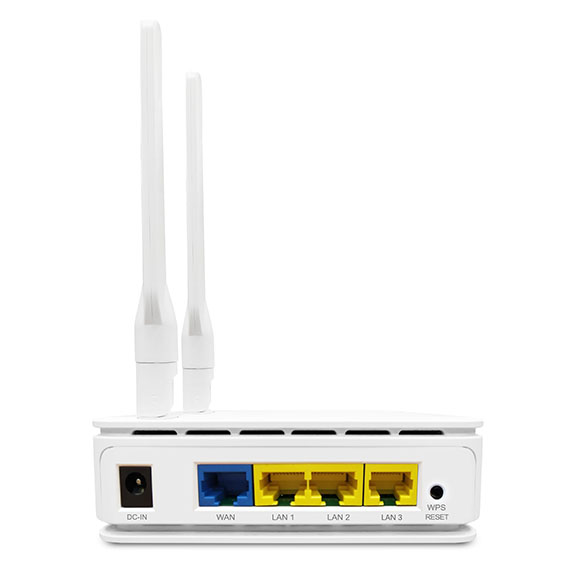

Interface 1 * DC Power Jack
1 * WAN:10/100/1000Mbps Auto MDI/ MDIX RJ-45 Ethernet Port
3 * LAN:10/100/1000Mbps Auto MDI/ MDIX RJ-45 Ethernet Port
WAN IP Assignment Static IP / DHCP client / PPPoE client
Features IGMP snooping and IGMP proxy
IPv4/IPv6 dual stacks function
VPN pass through
Management - HTTP Web-based Configuration
Remote Management - TR069 / HTTP
MU-MIMU : Down link & Up link
OFDMA : Down link & Up link
BSS coloring
802.11r Roaming
Lower Power consumption 28nm
Support Mobile App to set up EASYMESH network quickly
Button WPS, Reset
LED Power, WLAN, WPS, WAN, 3 x LAN,  WiFi Strength
Antenna 2 x 5dbi External Antennas
Wireless Security 64 / 128-bit WEP,WPA, WPA2, WPS
Operating Environment Operating temperature: 0 – 40°C
Storage temperature: -20 – 70°C
Humidity: 20 – 95%RH non-condensing
Dimensions 116 (L) × 91 (W) × 29(H) mm
Package 1pcs Wireless EasyMESH WiFi-6 Router
1pcs Power Adaptor
1pcs Quick Installation Guide
1pcs Ethernet Cable (RJ-45)
